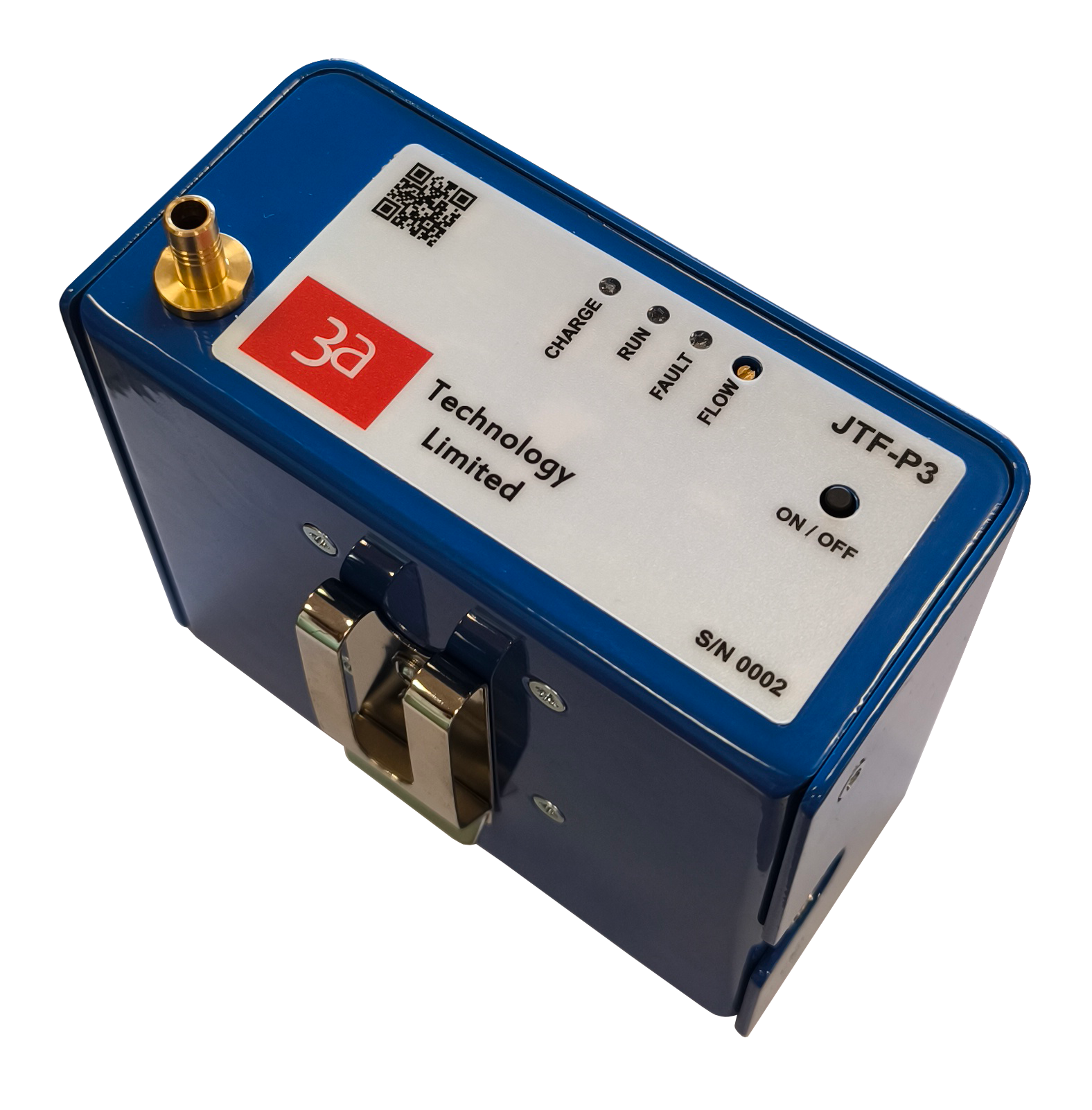

JTF-P3 Personal Air Sampling Pump

Product Description

Our new JTF-P3 personal air sampling pump can not only be used for asbestos sampling,
but now also features the use for occupational hygiene and vapour sampling work.

This makes the JTF-P3 far superior to our previous personal pump, as it can achieve a wider range of flowrates when using various types of sample media and also features flow compensation and much longer run times due to our selected parts and efficient redesign of the control board.

---

Air Sampling Pump Specs and Features

• • Dimensions:
    (inc. Belt Clip & Hose Inlet) approx. 11 x 11 x 6cm
    (w/o Belt Clip & Hose Inlet) approx. 11 x 10 x 5cm

• • Weight: 650g

• • Brass Hose Inlet Fitting
    (Hose outlet fittings are also available)

• • Front Panel Flow Adjust:
    0 – 7.5 L/Min (In Free Air)
    0 – 5 L/Min (0.8 Micron Gridded Filter)
    0 – 6 L/Min (GFA Filter)

• • Front Panel LED lights:
    Charging status (Red/Green)
    Pump on/off (Blue)
    Pump backpressure overload/fault (Red)

• • Front Panel on/off Push Switch

• • Charging Socket:
    Stainless steel 4-pin charging plug and socket which has a push pin
    locking feature and can only be inserted one way due to the key shape

• • Flow Compensation:
    25 inches of water/back pressure at 2L/Min, +/- 5% (GFA Filter)
    20 inches of water/back pressure at 2L/Min, +/- 5% (0.8u Filter)

• • Run Times (Standard Battery Pack):
    70 Hours + at 2L/Min (GFA Filter)
    20 Hours + at 4L/Min (GFA Filter)
    11 Hours + at 5L/Min (GFA Filter)
    45 Hours + at 2L/Min (0.8 Micron Filter)
    15 Hours + at 4L/Min (0.8 Micron Filter)
    5 Hours   + at 5L/Min (0.8 Micron Filter)
    30 Hours + at 100mL/Min (using a Low Flow Adapter with a glass sorbent tube)

• • Run Times (XL Battery Pack):
    100 Hours + at 2L/Min (GFA Filter)
    30 Hours + at 4L/Min (GFA Filter)
    65 Hours + at 2L/Min (0.8 Micron Filter)
    24 Hours + at 4L/Min (0.8 Micron Filter)

• • Lithium Ion (Li-ion) battery technology
    Low battery cut off, cell balancing and short circuit protection built in

• • Battery charging circuitry built into the pump with a front panel status LED
    (Red for charging, Green for fully charged)

• • Pump comes with a single charging power supply



(*This personal air sampling pump is not ATEX / I.S. / UL rated)

---

• Multi-way chargers will also be available
• XL battery pack also available for much longer run times
• Pump hose outlet fittings are also available
